Containers: from 50 ml up to 2l
Materials: PET, HDPE, PP
Outputs: from 6,000 up to 48,000 bottles/hour (1l)

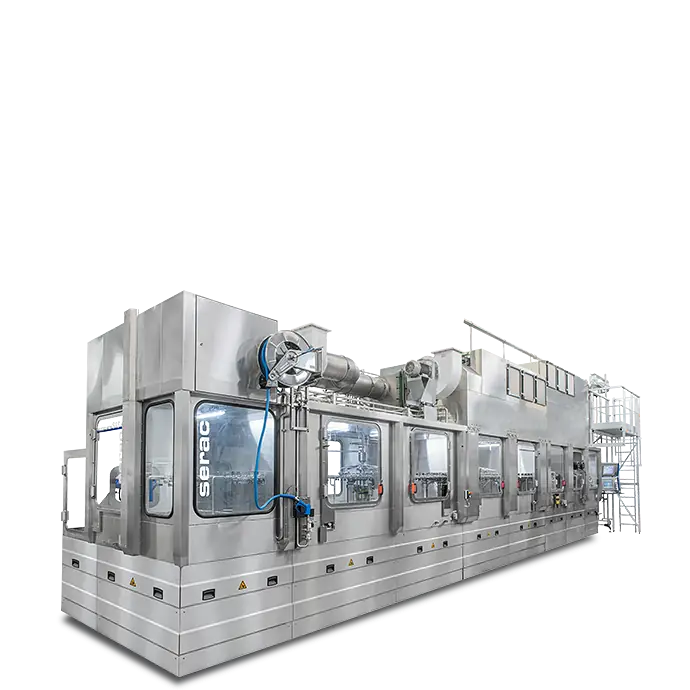

The in-line packaging sterilization method uses a chemical treatment process (peracetic acid, hydrogen peroxide) or electron-beam (BluStream) for more compacity and greater environmental efficiency. The design of the aseptic filling turret is unique with Multiflow (patented) magnetic valves. Servo-driven capper and waterproof heatsealer with hygienic designs. Aseptic isolator with unidirectional sterile air flow. Delivered with CIP/SIP module.

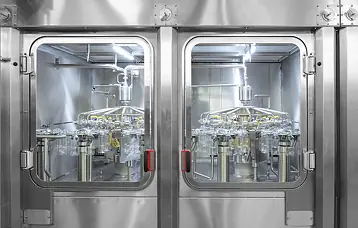

Bottle sterilization sequences before aseptic filling

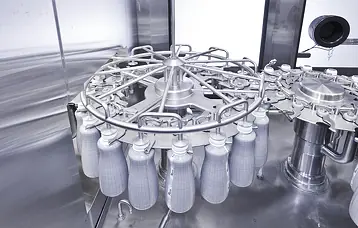

Nitrogen injection just before aseptic filling

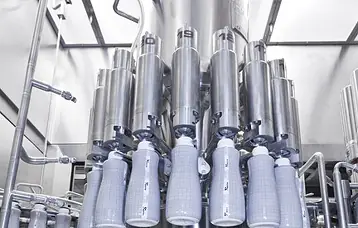

Aseptic filler equipped with the Multiflow magnetic valve

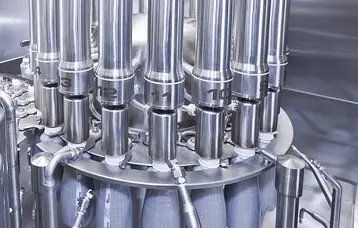

Aseptic heatsealer for aluminum foil caps : hygienic and waterproof design

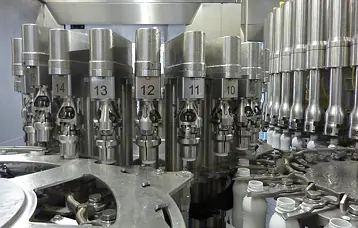

Aseptic capper with hygienic design: all mechanical driving parts are located outside the sterile zone
Ideally suited for high value added products and low/medium size batches
